How to Measure Boat Snaps
Learn how to measure boat snaps for replacement canvas, boat covers, upholstery, enclosures, curtains, and other marine fabric. This guide explains snap cap size, stud dimensions, socket types, mounting holes, spacing, and how to identify the correct replacement hardware.
What measurements do you need for boat snaps?

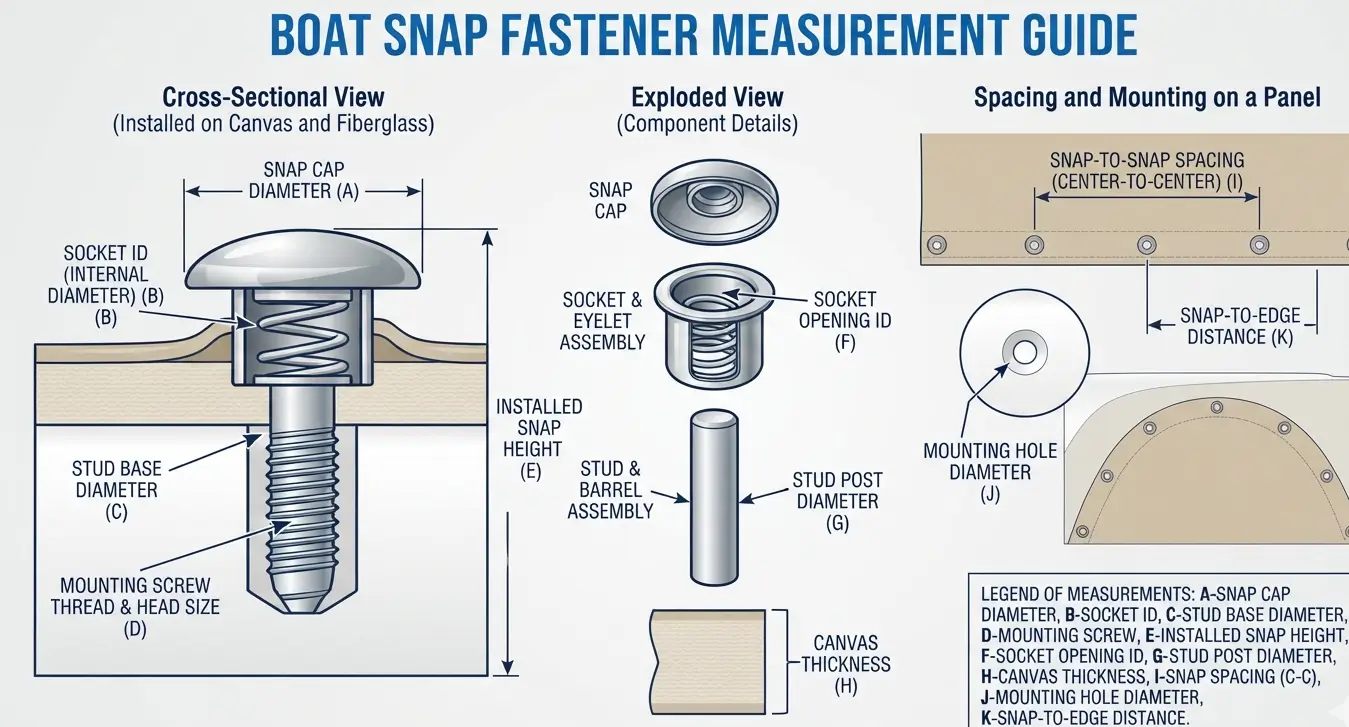

The most useful measurements are:
- Snap cap outside diameter
- Post or stud diameter
- Post length
- Stud base diameter
- Mounting-hole diameter
- Snap-to-snap spacing
- Fabric hole or punch size
- Snap type and style
- Material and finish
Some of these dimensions apply to the fabric socket and others to the male stud mounted to the boat. Both sides of the snap system need to be compatible.
What is a boat snap?
A marine snap is a two-part fastener commonly used to attach boat covers, canvas, upholstery, curtains, and enclosures to the boat. One part is attached to the fabric and the mating part is attached to the boat.
The two components must match mechanically. A snap with the correct visible size can still be incompatible if the socket and stud profiles are different.
How do you measure the diameter of a boat snap?
Measure across the widest outside portion of the snap cap. Use a caliper when possible because marine snaps are relatively small and a small measurement error can make identification difficult.
Snap Diameter: outside edge → outside edge across the cap
Do not measure only the visible central opening or the inside of the socket. The cap diameter and socket dimensions are different.
What size are boat snaps?
Marine snaps are sold in several sizes and styles. Common products are often described by their nominal cap diameter, but the exact dimensions and terminology can vary by manufacturer.
Because of these variations, the most reliable approach is to measure the existing snap and compare it with the manufacturer's dimensional information.
How do you measure a boat snap stud?
Measure the stud's outside diameter, base diameter, post length, and mounting-hole or screw dimensions if applicable.
If the stud is a screw-mounted type, also record the thread size and head style.
Stud Measurements: diameter + base + post length + mounting thread
How do you measure a boat snap post length?
Post length should be measured from the underside of the snap head or flange to the end of the post, using the manufacturer's reference point when available.
Post length is especially important for snaps installed through thicker fabric, layered canvas, vinyl, webbing, or padding.
How do you measure a snap mounting hole?
Measure the diameter of the hole through which the snap post or fastener passes. For best results, measure an existing clean hole that has not been enlarged or distorted.
If the hole is damaged, compare it with an undamaged snap elsewhere on the cover before choosing a replacement.
How do you measure the distance between boat snaps?
Measure from the center of one snap to the center of the next snap. This center-to-center spacing is the most useful measurement when recreating a pattern.
Snap Spacing: center of snap 1 → center of snap 2
Do not measure from the outside edges because that dimension changes with snap diameter.
Should you measure the snap or the fabric hole?
Measure both when replacing canvas hardware. The snap dimensions determine which fastener fits the existing stud, while the fabric hole determines whether a new socket or snap can be installed without damaging the fabric.
If the old hole is stretched or torn, use an intact snap location elsewhere on the cover as the reference.
How do you identify a boat snap type?
Start by examining the complete snap assembly. Identify whether the boat-side component is a screw stud, snap stud, turn-button, eyelet-style fastener, or another attachment system.
Then compare the fabric-side socket with the available matching stud systems.
| Part | What to Measure |
|---|---|
| Snap cap | Outside diameter and style. |
| Socket | Internal mating profile and fabric attachment. |
| Stud | Base, post, diameter, and mounting method. |
| Fabric | Thickness and existing hole size. |
How do you measure boat snaps for replacement canvas?
When replacing the snap hardware on an existing boat cover, first document the existing stud locations. Then inspect the fabric-side sockets and measure the snap diameter and post configuration.
- Photograph the existing snap from the front and back.
- Measure the snap cap diameter.
- Measure the fabric thickness.
- Measure the socket and post dimensions.
- Measure the boat-side stud.
- Measure stud mounting-hole or screw dimensions.
- Record snap-to-snap center spacing.
- Compare the measurements with the manufacturer's snap dimensions.
How do you measure boat snaps for upholstery?
Upholstery applications can involve thicker materials than normal boat covers. Measure the combined thickness of the fabric, foam, backing, piping, or other layers where the snap is installed.
The post length must be sufficient for the complete material stack while still allowing the snap to seat correctly.
How do you measure a screw-in boat snap?
For a screw-mounted snap stud, record the stud base diameter, screw diameter, screw length, thread type, head diameter, and any washer or spacer arrangement.
The screw length should match the material being fastened without creating an unnecessary protrusion or damaging wiring, tanks, or structural components behind the mounting location.
How do you measure a snap-on boat cover?
If you are measuring the snaps rather than the entire cover, map their positions along the edge of the fabric. Record each snap's distance from a common reference point, such as the bow seam or corner.
This allows the snap pattern to be recreated if the cover or canvas needs to be rebuilt.
How do you measure snap placement on a boat?
Choose a fixed reference point and measure to the center of each snap. For example, measure every snap from the bow centerline, gunwale corner, or a defined seam.
Using one common reference makes it much easier to reproduce the pattern accurately.
Snap Position: fixed reference point → snap center
Should boat snaps be evenly spaced?
Not necessarily. Many covers use approximately regular spacing, but corners, seams, zippers, curves, poles, and areas with greater fabric tension can require different spacing.
When replacing existing hardware, copy the actual original snap pattern instead of assuming a uniform distance.
What are the most common boat snap measuring mistakes?
- Measuring the inside rather than outside cap diameter.
- Confusing snap socket dimensions with stud dimensions.
- Measuring snap spacing edge-to-edge instead of center-to-center.
- Ignoring fabric thickness.
- Ignoring screw thread size.
- Using a damaged fabric hole as the reference.
- Assuming all marine snaps use the same socket and stud profile.
- Not recording the original snap locations.
- Mixing metric and imperial dimensions.
How to measure boat snaps step by step
- Remove dirt, corrosion, or debris from the snap.
- Identify the snap style and boat-side stud.
- Measure cap outside diameter.
- Measure socket and post dimensions.
- Measure the stud and mounting hardware.
- Measure the fabric thickness.
- Measure the existing hole if it is undamaged.
- Record snap center-to-center spacing.
- Photograph the complete assembly.
- Compare all measurements with the replacement manufacturer's specifications.
Boat snap measurement FAQ
The snap type and mating stud are the most important for compatibility. After that, cap diameter, post dimensions, and mounting hardware help identify the exact replacement.
Measure the outside diameter of the snap cap with a caliper, then measure the corresponding socket and stud dimensions.
Measure from the center of one snap to the center of the next. Record each position from a common reference point if the entire snap pattern is being reproduced.
No. Two snaps can have the same visible diameter while using different socket, stud, post, or mounting systems. Match the complete mating assembly.
Not always. You can measure many dimensions while the snap is installed, but removal can make it easier to inspect hidden components and identify the exact construction.
Measure the existing snap and stud, identify the snap style, check the fabric thickness, and compare all dimensions with the manufacturer's product specifications before ordering.
