How to Measure a Boat Canopy Lift Canopy

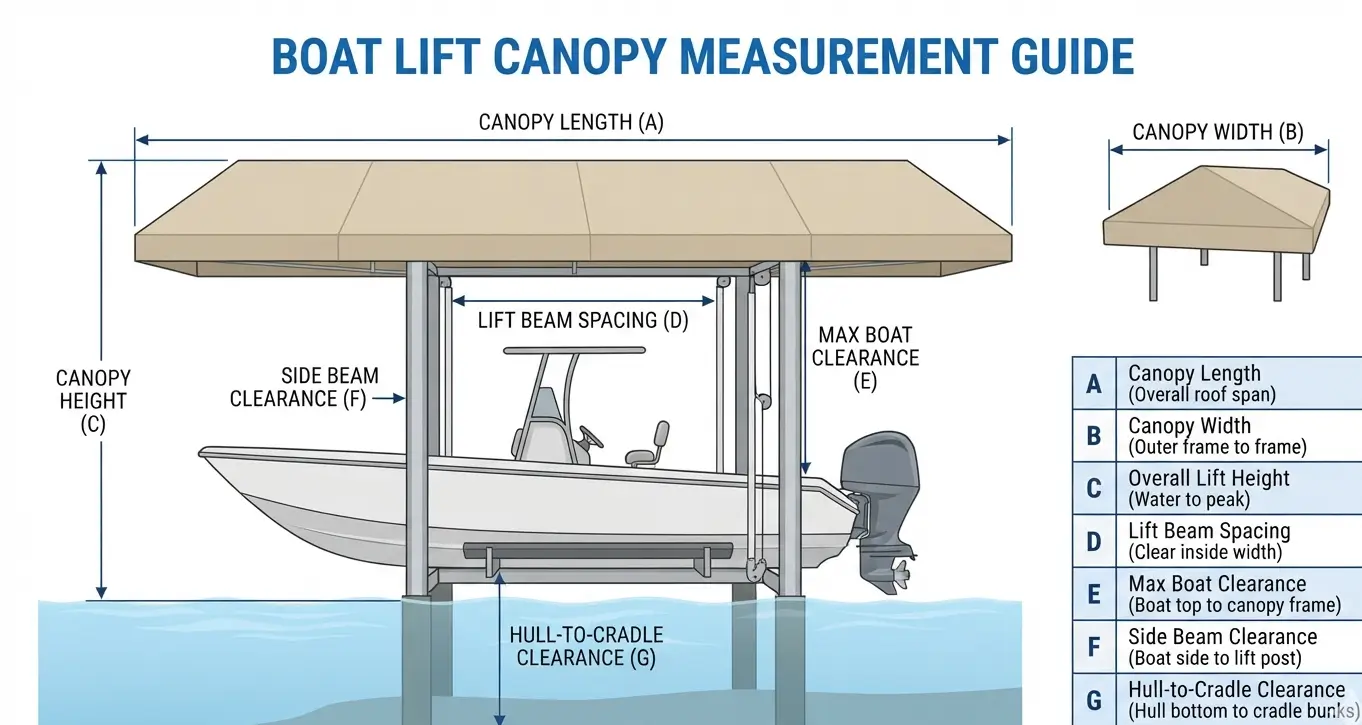

Learn how to measure a boat lift canopy correctly before ordering a replacement canopy or cover. This guide explains canopy length, width, height, lift beam spacing, boat clearance, frame dimensions, and the measurements needed for a proper fit.
What measurements do you need for a boat lift canopy?
The key dimensions are:
- Canopy length
- Canopy width
- Canopy frame length
- Canopy frame width
- Lift beam spacing
- Mounting-point locations
- Canopy height above the water
- Boat clearance
- Frame tubing or support dimensions
- Fabric attachment dimensions
The exact dimensions required depend on whether you are replacing only the fabric or the complete canopy frame.
How do you measure the length of a boat lift canopy?
Measure from the front end of the canopy frame to the rear end along the longitudinal direction of the lift.
For an existing canopy, measure the frame itself rather than relying on the boat's nominal length. A canopy can be shorter or longer than the boat depending on the desired amount of coverage.
Canopy Length: front frame edge → rear frame edge
How do you measure boat lift canopy width?
Measure across the canopy frame from one side to the other. Use the same reference point on both sides so the measurement is consistent.
For a replacement canopy fabric, check whether the manufacturer defines width as frame width, fabric width, or the distance between attachment points.
Canopy Width: left frame side → right frame side
Is boat lift canopy width the same as boat beam?
No. Boat beam is the maximum width of the boat. Canopy width is the width of the lift canopy structure.
A canopy normally needs to be wide enough to cover the boat while still fitting securely on the lift frame.
| Measurement | What It Describes |
|---|---|
| Boat beam | Maximum overall boat width. |
| Canopy width | Width of the lift canopy frame or cover. |
| Clear interior width | Usable width available above the boat. |
How much wider should a boat lift canopy be than the boat?
The required clearance depends on the canopy design, lift frame, boat shape, and the manufacturer's specifications. There is no single universal amount that should simply be added to the boat beam.
The canopy must cover the boat while clearing rails, windshields, consoles, cleats, towers, and other protruding equipment.
How do you measure boat lift canopy height?
Canopy height should be measured relative to the water, dock, lift frame, or another clearly defined reference. Record the normal operating water level if the lift is installed in a location with significant water-level variation.
Also measure the highest point of the boat that the canopy must clear, such as a windshield, tower, fishing console, or arch.
$$Required\ Clearance = Highest\ Boat\ Point - Canopy\ Reference$$
How do you measure clearance between the boat and canopy?
Lower or raise the boat lift to its normal storage position and measure the vertical distance between the highest boat component and the underside of the canopy frame or fabric.
Check the clearance at several points because the boat, canopy, and lift frame may not be perfectly level.
- Place the boat in the normal lift position.
- Raise the lift to the normal storage height.
- Identify the highest point of the boat.
- Measure to the lowest point of the canopy structure.
- Repeat at the bow, center, and stern.
How do you measure a boat lift canopy for replacement fabric?
If the frame is staying in place, measure the existing frame and the points where the fabric attaches.
Record:
- Frame length
- Frame width
- Fabric attachment method
- Number and position of attachment points
- Fabric pocket dimensions
- Edge or hem dimensions
- Center support and bow/stern frame shape
Measuring only the old fabric can be inaccurate because fabric can stretch, shrink, sag, or deform with age and weather exposure.
Should you measure the old canopy fabric or the frame?
Measure the frame whenever possible. The frame defines the actual geometry that the replacement fabric must fit.
The old fabric can still provide useful information, particularly for seams, pockets, straps, and attachment locations, but it should not automatically be treated as the exact original dimensions.
How do you measure boat lift beam spacing?
Identify the two lift beams or support structures that carry the canopy frame and measure the distance between them.
Record whether the measurement is:
- Inside-to-inside
- Outside-to-outside
- Center-to-center
These measurements are different and should never be mixed when ordering replacement brackets or canopy hardware.
How do you measure a boat canopy lift for a replacement frame?
A replacement frame requires more detailed measurements than a replacement fabric. Record the canopy length, width, frame tube diameter, support-arm position, hinge locations, mounting hardware, beam spacing, and the angle or shape of the existing frame.
- Measure overall frame length.
- Measure overall frame width.
- Measure frame tube diameter.
- Measure support-arm spacing.
- Record hinge and bracket locations.
- Measure lift beam spacing.
- Record canopy height and boat clearance.
- Photograph the complete frame from multiple angles.
How do you measure a boat lift canopy for a pontoon boat?
Start with the pontoon boat's overall length and beam, then measure the lift canopy length and width. Check pontoon spacing and measure the highest points of the railing, furniture, windshield, and console.
Pontoon boats can have large upper structures, so vertical clearance can be just as important as canopy width.
How do you measure a boat lift canopy for a fishing boat?
Fishing boats often have elevated consoles, trolling motors, pedestal seats, rod holders, and casting platforms. Measure all permanent structures that remain installed while the boat is under the canopy.
If seats or accessories are removed for storage, note their normal storage configuration before deciding on canopy clearance.
How do you measure canopy height when water level changes?
If the boat lift is located where water level changes substantially, measure the canopy and boat relationship at the relevant high and low water conditions.
The canopy needs enough clearance throughout the expected operating range, not only at the water level on the day you measure it.
How do you measure a canopy frame tube?
Use a caliper to measure the outside diameter of the tubing if possible. This is especially important when ordering replacement clamps, hinges, canvas pockets, or frame connectors.
A nominal tubing size and actual outside diameter are not always interchangeable, so use the manufacturer's specified dimensions when available.
What are the most common boat lift canopy measuring mistakes?
- Using boat beam as canopy width.
- Measuring old fabric instead of the frame.
- Not checking the highest point of the boat.
- Ignoring water-level changes.
- Confusing inside and outside beam spacing.
- Forgetting the frame tube diameter.
- Ignoring hinge and bracket locations.
- Measuring only one point of a long canopy frame.
- Not accounting for towers, windshields, or fishing equipment.
How to measure a boat lift canopy step by step
- Measure canopy frame length.
- Measure canopy frame width.
- Measure lift beam spacing.
- Record mounting bracket and hinge positions.
- Measure frame tube diameter.
- Measure the highest point of the boat.
- Measure the vertical clearance to the canopy.
- Check bow and stern coverage.
- Record water level if it varies significantly.
- Compare all dimensions with the replacement canopy manufacturer's specifications.
Boat lift canopy measurement FAQ
No. The canopy is sized around the lift frame and the clearance needed to cover the boat. Boat length and beam are useful references, but they do not define the canopy dimensions by themselves.
Measure the existing canopy frame, including length, width, mounting locations, and tube size. Then compare those dimensions with the replacement canopy manufacturer's specifications.
Yes. Include the highest permanent component that must fit beneath the canopy, such as the windshield, console, tower, or raised fishing equipment.
The required clearance depends on the specific canopy and boat. Measure the actual highest point of the boat and follow the canopy manufacturer's clearance requirements rather than using one generic number.
Often yes, when the existing frame is still suitable. In that case, measure the frame and all fabric attachment dimensions rather than relying only on the old fabric.
Measure the canopy frame length and width, lift beam spacing, pontoon boat width, railing height, and the highest permanent equipment that must clear the canopy.
